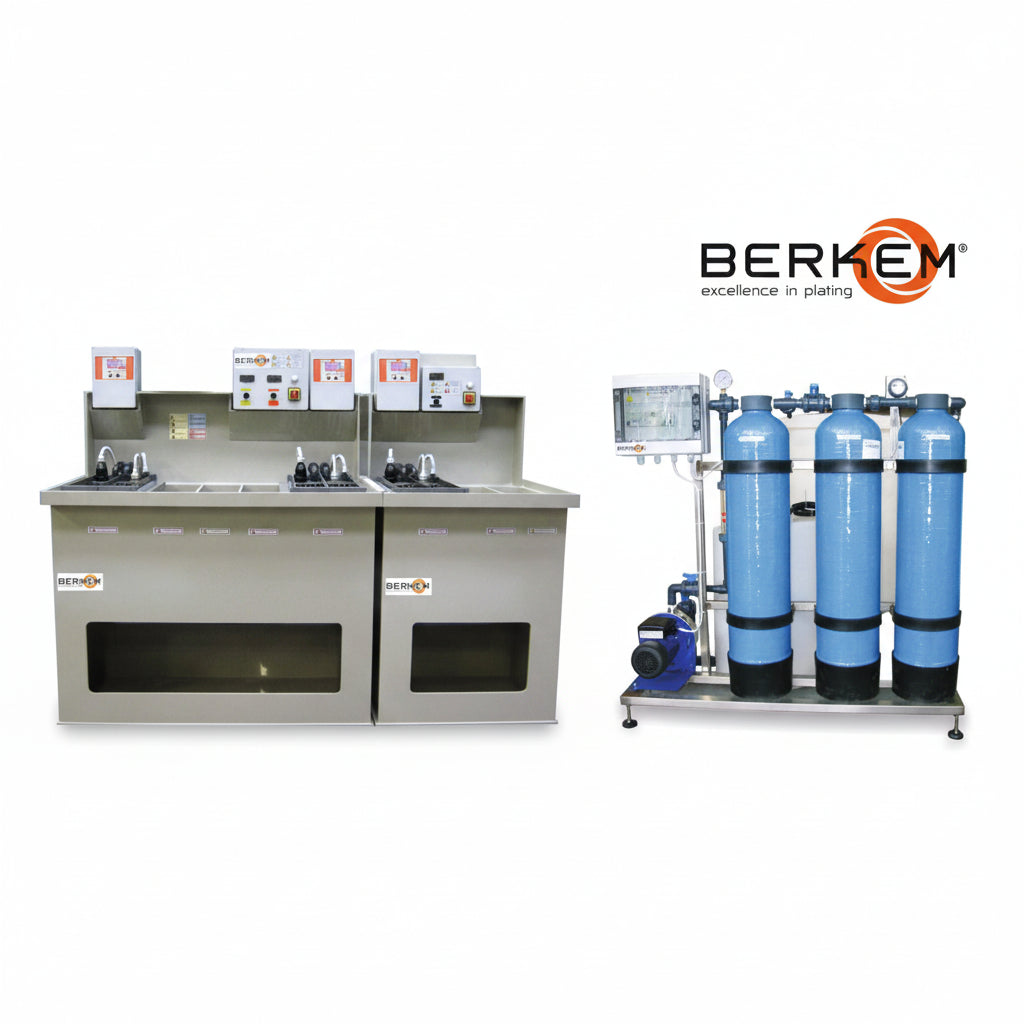

Industrial Electroplating Plants With Water Treatment System

Features of the 6-tanks BASE systems

• Degreasing tank interchangeable from 12 to 60 litres

• Washing tanks, recovery, neutralisation, recovery, washing from 40 litres

• Length: min 150 – max 250 cm

• Weight: min 150 – max 200 Kg

• Power supply: optionally 230V–380V–115V 50/60Hz

• Absorbed current: 15–20A

Features of the 3-tanks SATELLITE system

• Galvanic tank interchangeable from 12 to 60 litres

• Washing tanks, recovery from 40 litres

• Length: min 100 – max 150 cm

• Weight: min 100 – max 150 Kg

• Power supply: optionally 230V–380V–115V 50/60Hz

• Absorbed current: 15–20A

Features of the treatment systems

• Electrical panel

• Collection tank

• Recirculation pump

• Pressure gauge for the control of working pressure

• Flowmeter for the adjustment of the hourly flow

• Regulation valves

• Columns filled with resins suitable for the type of treatment required

• Containment frame in stainless steel

• Meter of the conductivity of the water leaving

Equipment of BASE / SATELLITE system

• Electrical panel

• Fumes extraction

• Loading and unloading valves

• Programmable digital rectifier

• Titanium platinum / Stainless Steel anodes

• Complete filter pump
