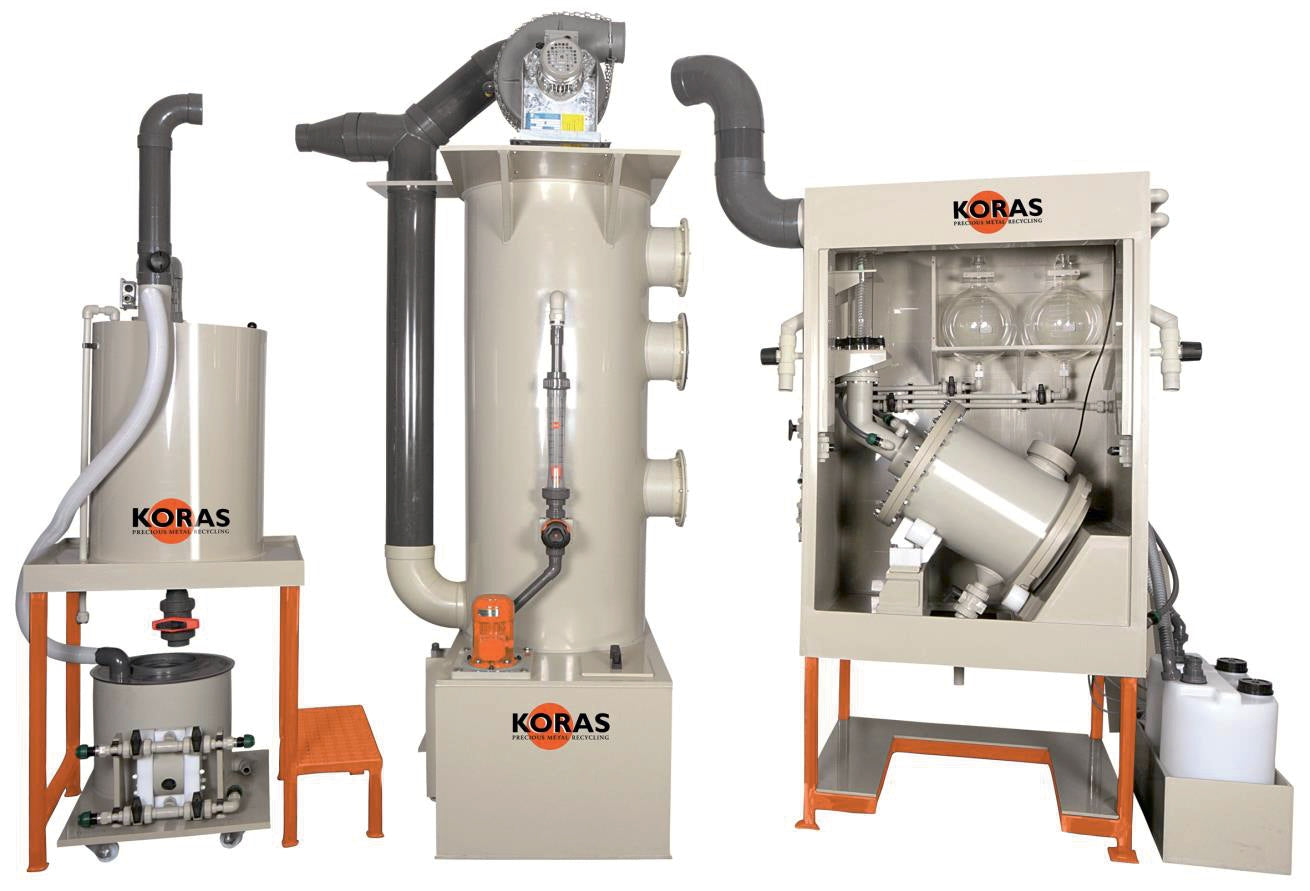

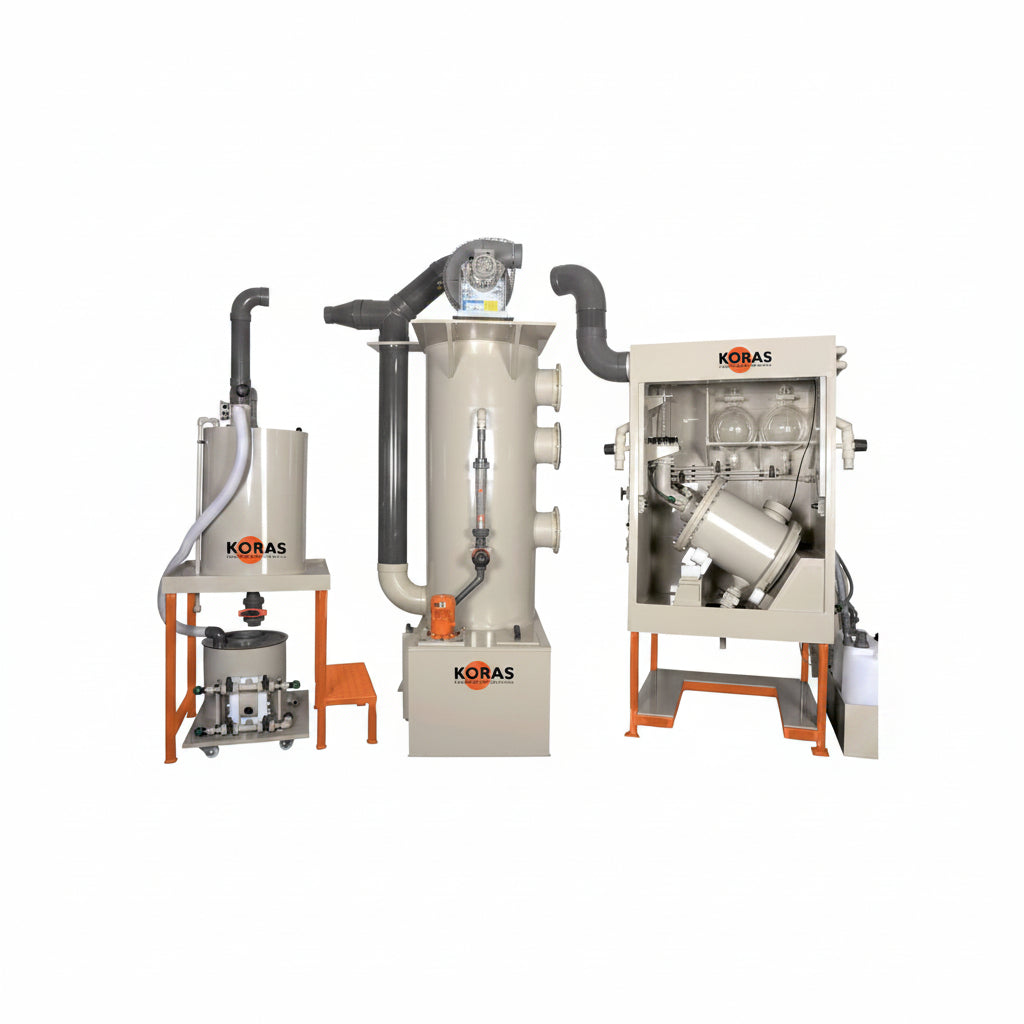

Gold Refining Tumbler TB 07

Technological leader in the field of recycling systems

Compact, space-saving, modular recycling series
Capacity: 2.5–120 kg precious metal within 8 hours
Easily extendable through modular design
The dissolving tank angled at 30° rotates. This realises an excellent mixing process with the precious metal granules continually grinding against each other. This process serves to remove the silver chloride from the alloy surface and then finally dissolves it.
Heating is not required
Condenser in SCHOTT glass
Dissolving medium: aqua regia (HNO3 + HCL)
The complete unit is located under an exhaust hood and in a drain tray
Acids and solvents are not conveyed through pressing but by suction (vacuum)

Technical Data:	NEW TB 2	TB 7	TB 15	TB 30	TB 60	TB 120
Power supply	400 V three phase	400 V three phase	400 V three phase	400 V three phase	400 V three phase	400 V three phase
Power	0.3 kW	0.8 kW	0.8 kW	0.8 kW	2 kW	5 kW
Quantity refinable every 8hrs	2–2.5 kg	7 kg	15 kg	30 kg	60 kg	120 kg
Dimensions (mm)	1200 x 670 x 1120	1400 x 1040 x 2060	1950 x 1080 x 2340	1950 x 1080 x 2340	3200 x 2000 x 3200	3600 x 2200 x 3600
Weight (approx.)	80 kg	250 kg	350 kg	400 kg	550 kg	650 kg
